1LE21212AB114AA3 – 7.5 HP 1800 RPM 213T 230/460V GP100A

Description

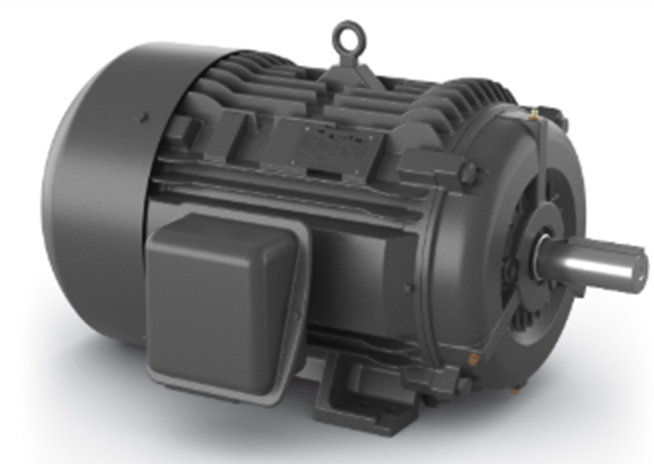

ABB NEMA 1LE21212AB114AA3 – 7.5 HP 1800 RPM 213T 230/460V GP100A

GP100A is a new line of ABB NEMA aluminum housing motors, suitable for general purpose use. They weigh less than comparable rolled-steel frame motor designs yet provide more structural strength for a wide variety of industrial applications. Available in foot mounted and C-face footless design. These motors are designed to NEMA Premium efficiency and are designed to be run DOL (Direct on-line) or with variable speed operations.

Features

• 1 – 20 Hp (0.75 – 15 kW)
• NEMA frame 143 – 256
• 230/460 and 575 volts
• 2, 4, 6 pole
• Aluminum frame and end-shields
• Aluminum diagonally split oversized terminal box
• Zinc-plated hardware
• Epoxy paint for corrosion resistance
• Class F insulation at 1.15SF, NEMA Class B temperature rise at 1.0SF
• Inverter duty per NEMA MG1 Part 31 (VT 20:1, CT 4:1)

Common applications

• Conveyors
• Pumps
• Fans
• Compressors
• Industrial and commercial applications

Common industries

• Material handling
• Unit and baggage handling
• Air handling
• Food and beverage
